Our Products

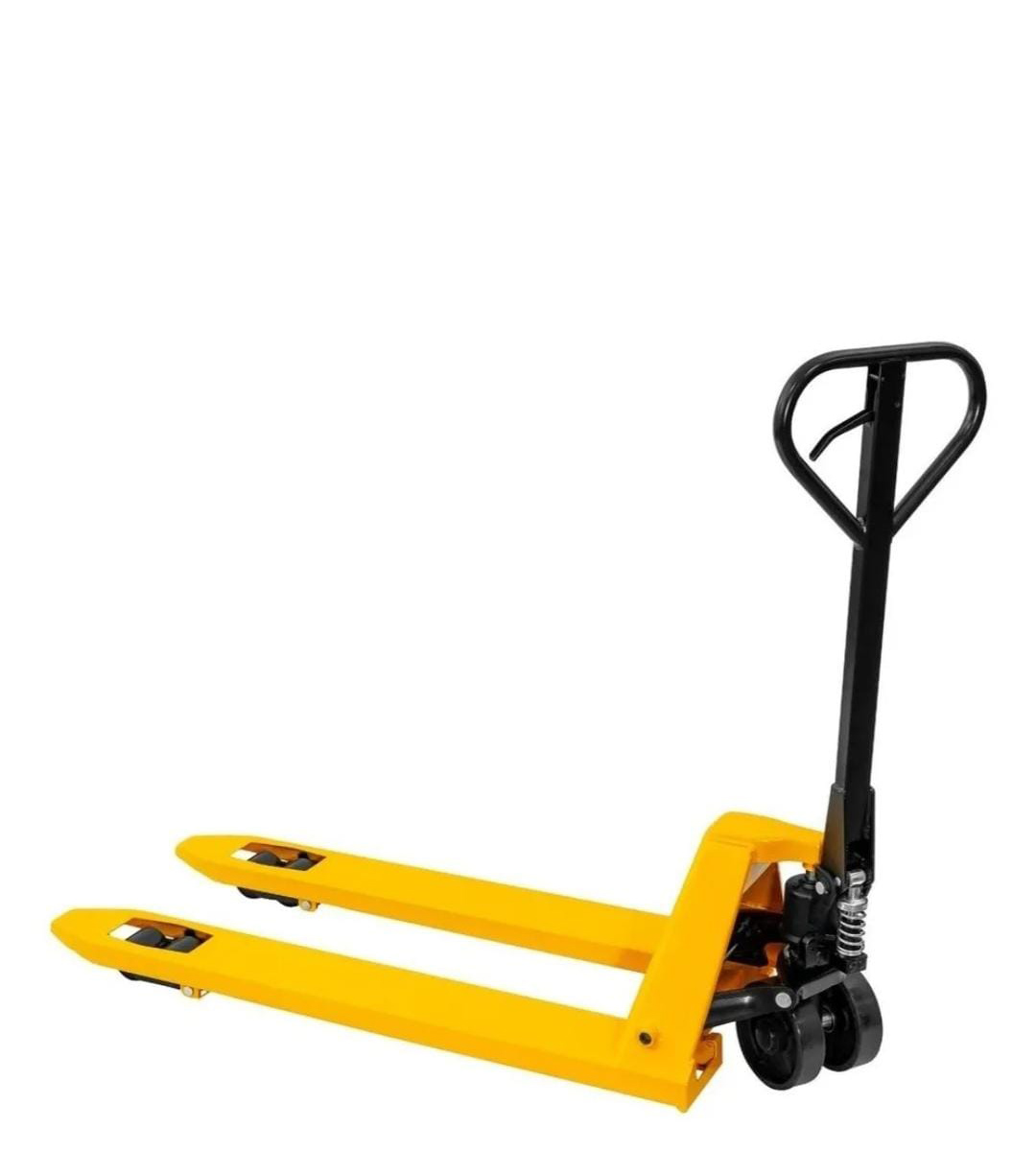

Handling EquipmentHYDRAULIC HAND PALLET TRUCK
| Model | SPPT 2.5 | SPPT 3.0 | SPPT 5.0 |
|---|---|---|---|
| Capacity(Kg) | 2500 | 3000 | 5000 |
| Min. fork Height(mm) | 85 | 85 | 85 |
| Max. fork Height (mm) | 195 | 195 | 195 |
| Lifting height (mm) | 110 | 110 | 110 |
| Fork Length(mm) | 1150 | 1220 | 1220 |
| Single fork Width(mm) | 160 | 200 | 160 |
| Fork overall width(mm) | 550 | 685 | 685 |
| Fork wheel single(mm) | 80x93 | 80x93 | 80x93 |
| Fork wheel tandem(mm) | 180x50 | 180x50 | 180x50 |
| Steering wheel (mm) | 180 | 180 | 180 |
| Weight(Kg) | 80 | 85 | 140 |
HYDRAULIC HAND PALLET TRUCK
| Model | SPPS 2.0 | SPPS 2.0 |
|---|---|---|
| Capacity(Kg) | 2000 | 2000 |
| Max. lifting height(mm) | 1600 | 3500 |
| Lowered height of forks(mm) | 85 | 85 |
| Fork length (mm) | 900/1150 | 900/1150 |
| Adjustable Width of fork(mm) | 270-680 | 270-680 |
| Lifting speed(mm/stroke) | 14 | 14 |
| lowering speed(mm/stroke) | Controllable | Controllable |
| Outer width of front legs (mm) | 750 | 750 |
| Self Weight(kg) | 180 | 300 |

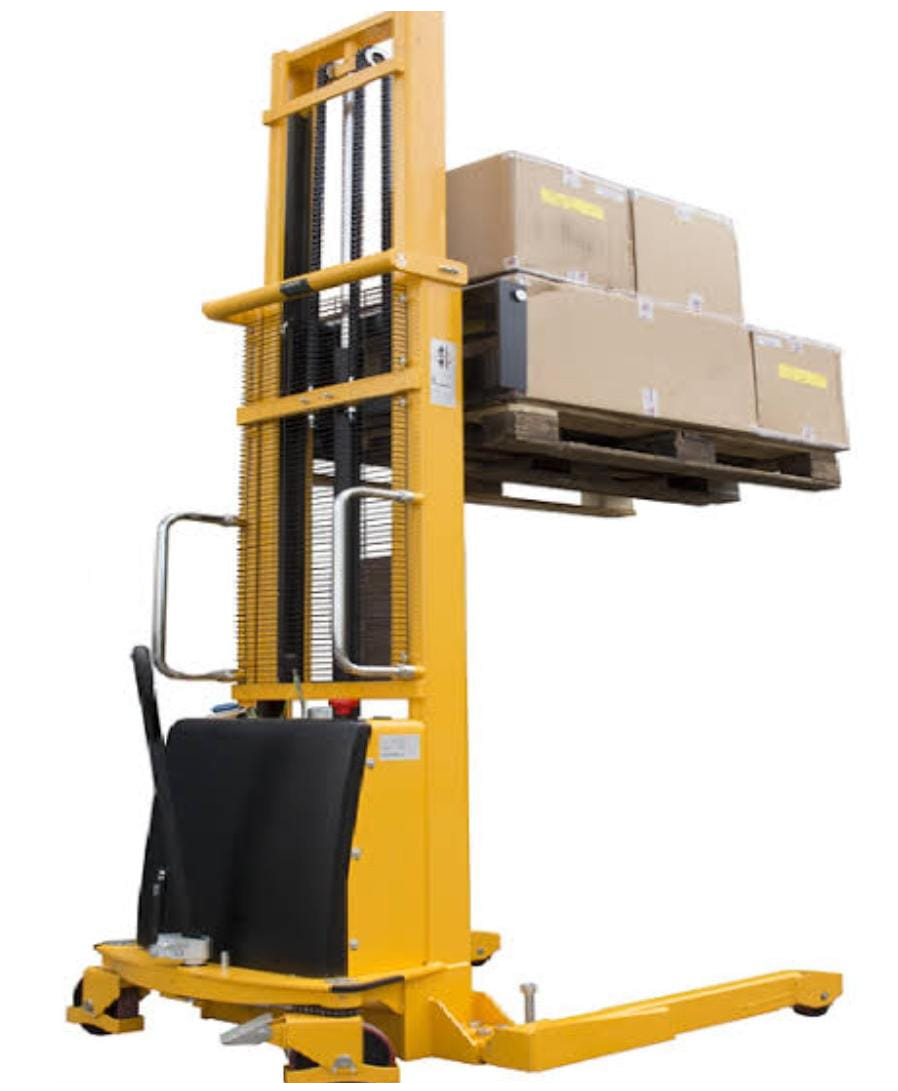

SEMI ELECTRIC STACKER
| Model | SPPS 1.5 S |
|---|---|
| Capacity(Kg) | 1500 |
| Min. Fork Height (Mm) | 90 |
| Max. Fork Height (Mm) | 3000 |
| Fork Width (Mm) | 320-695 |
| Fork Length(mm) | 1000 |
| Battery (V/Ah) | 12/120 |
| Lifting Motor Power (kw) | 1.5-1.6 |
| Battery Weight (Kg) Type of Moving | 27 |
| Type of moving | Manual |
