Our Products

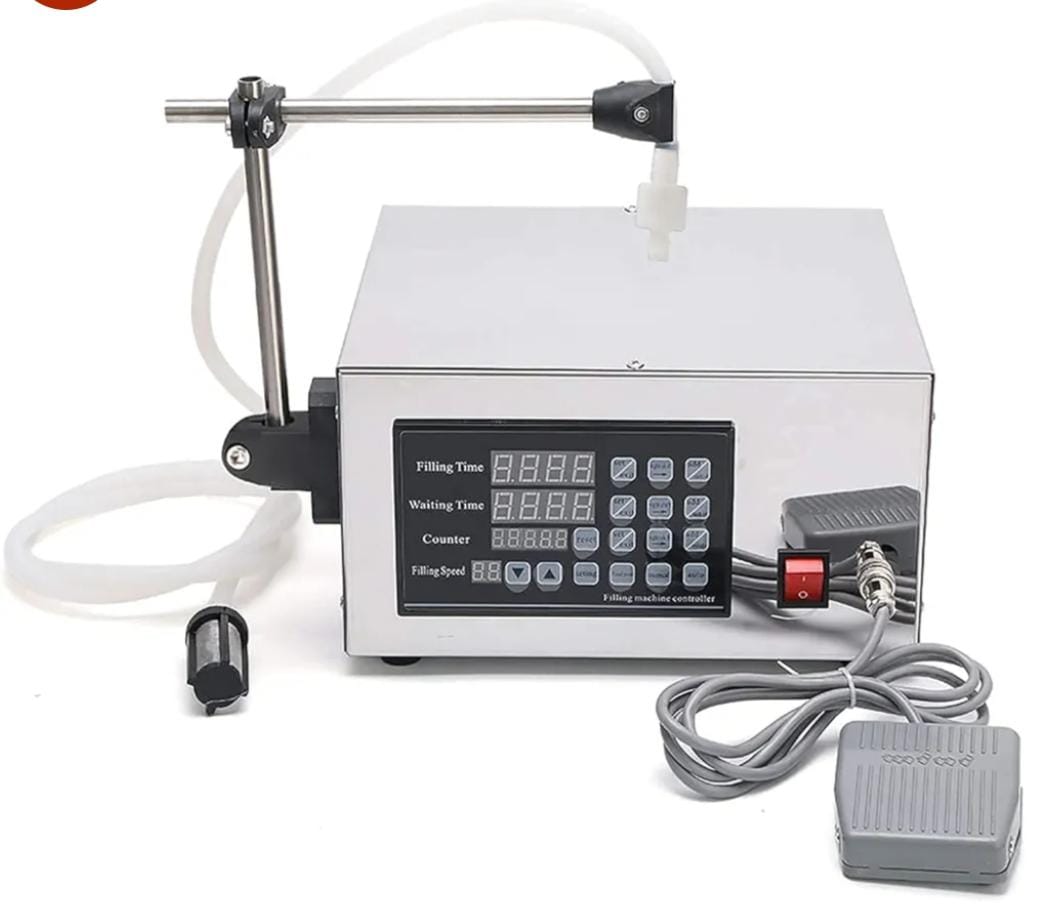

Filling MachineMINI LIQUID FILLER MACHINE
| Model | SP MLF 200 |
|---|---|
| Voltage(V/Hz) | 110V-220V/50-60 Hz |
| Maximum Runoff | 2000ml/M (Water) |
| Filling Range | 5 ml - 2000ml |
| Optimal Filling Range | 5 ml - 1000ml |
| Filling Precision | +2% |
(* Double Nozzle also available)

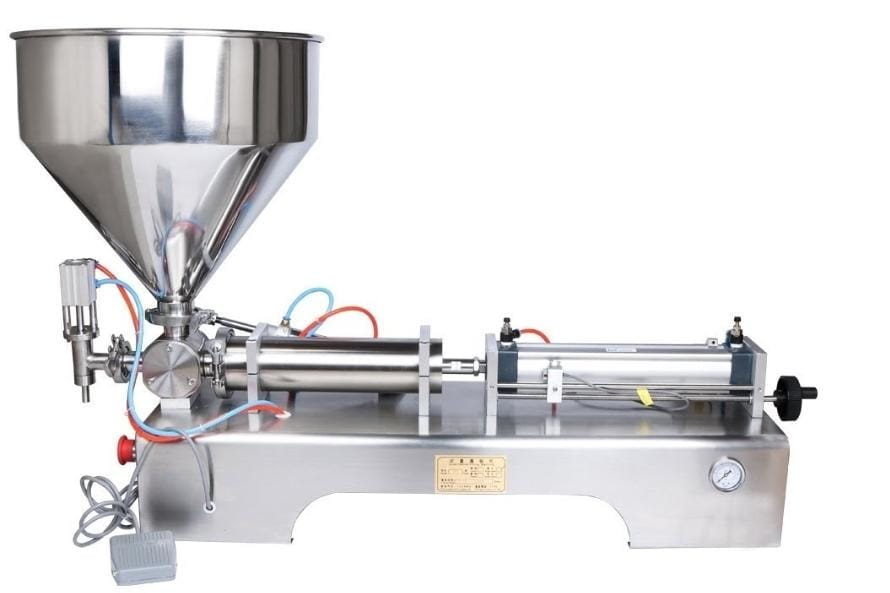

PASTE FILLING MACHINE
| Model | SPPF 100 | SPPF 500 | SPPF 1000 |
|---|---|---|---|
| Voltage (V/Hz) | AC 220/50 | AC 220/50 | AC 220/50 |
| Power (W) | 20 | 20 | 20 |
| Gas Pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Filling Range (ml) | 10-100 | 50-500 | 100-1000 |
| Filling Capacity (times/min) | 440x420x100 | 530x525x100 | 700x620x250 |
| Sealing Length (mm) | 10-18 | 10-18 | 10-18 |
| Filling Accuracy | <1% | <-1% | ≤1% |
| External Dimensions (LxWxH) (cm) | 100X50X105 | 100X50X105 | 100X50X105 |
| Net Weight (Kg) | 30 | 35 | 40 |

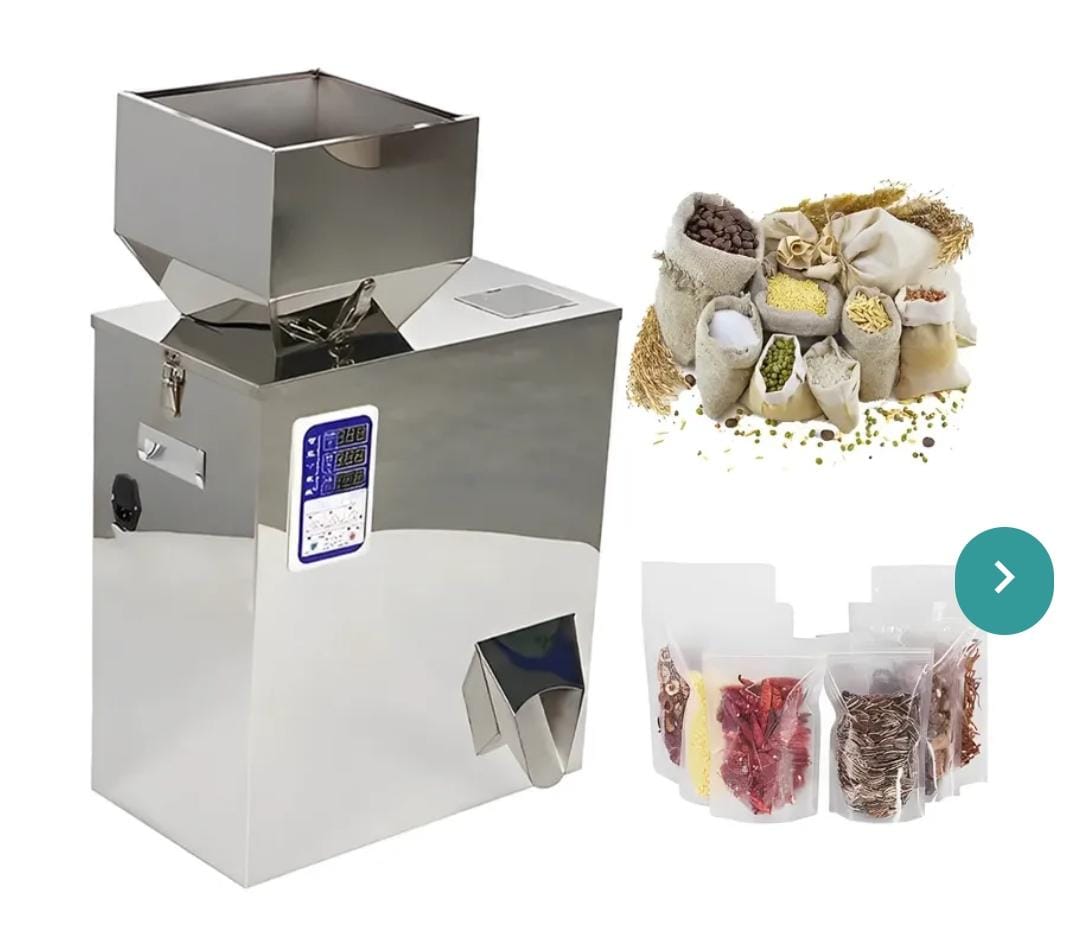

POWDER AND GRANULE FILLER
| Model | SP PGF 200 | SP PGF 999 |
|---|---|---|
| Working Voltage | 220 V / 50 Hz | 220 V / 50 Hz |
| Packaging Range (g) | 10-200 g | 10-999 g |
| Packaging Accuracy (g) | + 1g | + 3g |
| Packaging Speed | About 5-12 Bags/Minute (Depending Upon Material) | About 5-12 Bags/Minute (Depending Upon Material) |
| Dimension (LxWxH) | 500x370x810 (mm) | 300x500x1250 (mm)/td> |
| Power | 50 W | 50 W |
| Material | Stainless Steel | Stainless Steel |
